Satellite playground

It has been a while since I’ve posted here, and period of great turmoil in my life. Now that things have settled a bit, I can start to gradually bring together all the ideas I’ve gathered in the past month. All in all, I am constantly in a cheerful mood and now that spring (mm..ok, maybe summer?) has finally arrived I was eager to write a quick article on playful ways to deal with satellite data.

Earth Observation is still a mystery subject for the majority of people. Everybody has that aunt that is greatly impressed when you talk about the way you study the Earth using images captured by a satellite up in the sky, right? Yet, we all use it very often. See satellite basemap in Google Maps or Google Earth. Yes, your friends might be fascinated about this and consider it highly technical, suited only for engineers or people with a good scientific background. No, satellite imagery use is no longer restricted to a handful of people. Thanks to some innovative startups, new applications on the web allow everyone to get their hands on EO data and quickly create something interesting to visualize.

I love the idea of satelite data getting more popular among non-scientists and I firmly believe that this is something worth sharing. I had this idea a couple of weeks a ago, when I first came across one tweet advertising a new mobile application called SnapPlanet. The app allows users to quickly create snapshots or animated GIFs using Sentinel 2 imagery. You can zoom in to any place on Earth (searching, using the random button or pinpoint to your location), choose your level of detail and control the bounding box shape and size. The next step is dedicated to the kind of snap you want: animated or static. Depending on the type, you’ll have custom features. For example, images have an option that allows users pick a band combination (although the exact ratio is not specified)  and GIFs can have different levels of illumination and speed. The neat thing is for both types, the first image to appear is usually the one that enlists the “best” atmospheric conditions, but don’t worry, you can browse the whole archive for that specific location, using the timeline and suggestive weather condition icon. GIFs are unfortunately limited to 8 selected pictures. When you’re done, a friendly bot will let you know when your GIF/image is processed and ready for sharing.

This slideshow requires JavaScript.

The great thing is that the images appear to have a certain enhancement or some sort of basic atmospheric correction. Also, the service is quick to deliver, glitch free, available for IOS or Android terminals and they also accept suggestions for future releases. You can share your results on all common social media channels and you’ll also have a personal profile to keep track of all your creations and others’ as well. There is also a search section, that works fine, with a lot of options to find interesting imagery and see and appreciate what other users did. The only problem…the app is new and seems to be popular only among remote sensing enthusiasts, but maybe it will be more populated soon.


Edit: While doing the snapshots for this post, I’ve also found out they will also include a new interesting bathymetry filter.

From my point of view, this is a great way to make satellite imagery easy to use even for those who are not proficient with this kind of data and there are a lot of interesting things to discover interactively. For example, a GIF can be useful in spotting changes in land use between seasons or years and band combinations can also reveal a lot about the unseen features or behavior in our environment. Take this picture that uses the near infrared band as a replacement for the red channel and you can spot the flooded areas, the cultivated land and the sediment flow in the Black Sea, in the Danube Delta. And you don’t have to be a scientist to do it!

Level of difficulty: 1 out of 3

30124671_10212327591449068_5578022893139796002_n


If you liked this picture, a more advanced web map of changes in the Danube Delta, can be found here. It is curated by my master thesis supervisor, Stefan Constantinescu, and features some satellite imagery and data for monitoring the Danube Delta environment.

My second option is a bit advanced and it is called Sentinel Playground , developed by Sentinel Hub. Here, you can play with full resolution, up to date data from Sentinel 2, Landsat, MODIS or even a Digital Elevation Model (DEM). It opens up on your default location, but you can search for any place on Earth. It has a plethora of possible band combinations to choose from and one nice thing is that they are also explained. Much to my delight, there is a geology band combo. DEM’s can be delivered in four palette options: greyscale, colorized, sepia or custom.


For those who are not so familiar with band combinations, ratios or index calculations, a simple explanation can be found googling the principles of optical remote sensing. Long story short, when satellite pass over a certain place, they take a group of grey scale pictures (scene), each representing the way that the satellite sensor captures the reflected light of a given wavelength. For example, plants absorb most of the red and near infrared light, but reflect more in the green part of the spectrum. This is the reason why we see them in shades of green and why they appear brighter on the green band snapshot. When taken separately, a scene’s package of pictures taken on different wavelengths, usually tell us less than a natural color (RGB), a combination of the red, green and blue bands, or a false color (any combination of bands replacing any of the channels  in the traditional red, green, blue combination). For example: near infrared as red, red as green and green as blue, will give us a better idea on crops and it is suitable for agriculture studies. Band ratios represent mathematical operations done between different bands and indexes are combinations of such mathematical operations. They are used in more complex analysis. For more information on Sentinel 2’s bands here’s a wiki. For L8 or MODIS sensors, more information can be found browsing through using the links above. For a quick remote sensing lesson, give this a go.

But the neat things don’t stop. There is a dedicated Effects panel, where you can choose from options such as Atmospheric Correction, Gain or Gamma, enhancing your image as you wish. There are features as well: searching by date in a calendar pane, adjusting your desired cloud cover level, so you can pick the best scene for you. Also, switching between different types of sensors can be done using the satellite button.

When you’re happy with all the adjustments, click Generate. A new window will open with a full resolution preview of your image. You can download, copy the link or share it through your social media accounts. Or embed it using the code snip provided with the key button, or integrate it in a certain web application in the same way, or…

Capture

I agree this is a bit advanced for common users, but it is still a great tool and does not require much knowledge on how satellites work or how imagery is processed. It’s main purpose is also more of a quick tool to create basemaps for bragging on the internet, spotting changes, make a rapid, rough, visual analysis using the spectral information or generating a code in a quick manner.

Level of difficulty: 2 out of 3


Sinergise’s Sentinel Hub has other interesting products. EO Browser for example, is a more complex one, suited more for scientists and less for the general public. But this doesn’t mean that you can’t obtain a nice result with minimum of effort and knowledge. Let me show you how!


The post that has driven me to this solution is this one. The people at Sentinel Hub use Medium a lot for sharing stories about their products, use cases and new updates and features. They also explain how they do all the processing with minimal resources and why they do it. If you are passionate about remote sensing, this is worth a follow and read.

First of all, you’ll need an account. You can create one following the instructions detailed here. Even though the Configuration Utility Platform rights will be revoked after 1 month, you can still use the credentials for logging in to EO Browser.

Second, go to the search bar and look for the place you desire or zoom and pan on the map until you get there. Additionally you can upload a KML/KMZ file or draw an AOI (area of interest). Next, you’ll need to choose one product from the panel list. For this article’s purpose, I’ll keep using Sentinel 2, but feel free to check the other products options as well, the list is quite comprehensive. Because it is faster and generates previews in a simpler manner, I’ll go for the L1C product. I will also set my cloud cover to desired percent (10% for me) and a time range large enough (maybe from the 1st of January?). Hit search, and you’ll be redirected to Results.

This slideshow requires JavaScript.

Choose whatever scene suits your taste by reviewing the attached information. This will pass you over visualization. Here, things are similar to the previous example (Satellite Playground). You can choose a band combination from the list (although not explained) and after processing (takes seconds, but it depends on your connection), download the result.

Sentinel-2 L1C, False color (urban) on 2018-04-12

If you feel more confident and have some EO skills, you can also enable analytical mode, where you can customize the download and choose between a greater number of options: image type, resolution, projection and bands. Depending on what you’ve selected, the process will take longer. I tried with the following settings: TIFF 16 bit, High res, Web Mercator, B2, B3, B4 (blue, green, red). It gave me a 11 MB archive and the content is mostly useful for the same, rough, visual analysis, as it does not have any data attached. So far, everything is similar to the Sentinel Playground.

One reason why I chose to feature EO Browser is its latest update that allows users to create GIFs. GIFs are nice, are eye catching and can also reveal a lot of interesting features, mainly if we think about changing elements. In EO Browser, the neighboring button helps us create such an animation. Select the dates and the cloud cover percentage and browse through results. I’ve done my demo on the Danube Delta, and kept only those scenes depicting the entire area.


Adjust for the speed and voila!

Sentinel-2_L1C-timelapse

What I like best in Sentinel Hub’s GIF is the fact that you can choose more than 8 frames. I don’t particularly fancy the logo stamps, but credit must be specified. It was quick, easy to use and spectacular in result. You can now share your newly created image or GIF with the rest of the world. :)

Level of difficulty: 3 out of 3 (only because it is more complex and has more sensors and features)


In conclusion, satellite data is not scary and everyone can create something meaningful and interesting, even perform a raw analysis within minutes. I absolutely love these simple ways of advertising the beauty of our Earth and make us aware of the changes that happen around us every single day. EO data is beautiful and has the power to move people when displayed in a exciting, comprehensible and accessible fashion. Using these web and mobile apps we can play, learn and share information on our planet, with only a couple of clicks and this is thanks to today’s technological development, innovative missions, people and businesses. Space is fascinating, data is frightening for the majority of people, but combining them shouldn’t necessary be hard. It is easier for us to communicate science and raise awareness on our habitat by making it accessible to non-traditional users.  These apps can become fantastic learning teaching tools or creative ways to generate content and reasons to discover the world. The point is to become more knowledgeable and conscious about the surrounding environment, about Earth and science and about the future.



Cheers,

Cristina



P.S: I am sure there are many more such tools. I would love to hear your suggestions and stories on how you’ve came across them, used them, what results did you get, how you and the people reacted when visualizing them, what was easy or hard in the process and what you’ve learned. Feel free to drop a comment below and help me with some valuable info of your experience.

Advertisements

Sentinel 2 first steps

Although optical imagery is easier to process and accommodate into one’s workflow, I admit I have had some other interests lately and never managed to fully explore Sentinel 2 as it deserves. With all my attention turned towards S1 and S3, their middle brother somehow escaped the ruffle. Not anymore.

For my research thesis, I am supposed to use both radar and optical imagery, hence I need to distribute equal time to check the developments in the field, to understand the sensors, their potential contribution and ultimately, how can I turn the data into useful information. At 10/20 m spatial resolution, Sentinel 2 is not ideal, but it is closer to what I am expecting from my satellite data, because of its multispectral capabilities in the IR region (you can check out info about the S2 bands here and here). Better than the great old Landsat though.

These being said, this is not the first time I tango with S2 data, did it many times before, but it is the first time I document it and share my thoughts. I’ll walk you through a couple of easy peasy ways to acquire, pre-process and obtain an analysis-ready product in an open source environment, so bear with me.

Ceahlau

#1 Sometimes old is gold

Call me old-fashioned, but currently, I am just experimenting to understand if the S2 data will be of use for my project. I don’t have so many scenes to investigate and I prefer to actually run through the whole workflow in order to understand what am I dealing with. Hence, I’ve decided it is enough for me to download a few scenes and use SNAP (the open source software ESA has developed for its flagship satellite program).

Why SNAP? Well, apart from the obvious statement above, SNAP natively recognizes the S2 format, has loads of dedicated processing options integrated, it is quite simple and intuitive and it is free. Free to download, free to multiply, free to use, free to enhance with more custom-made tools. Aaand it uses Python and GDAL integration for heavy load processing. Of course, there are other GIS applications that will help you get the desired result, even though they don’t rely on the same processing algorithms.

As I said, this tutorial is based on open source products so there will be no ArcGIS, ENVI or ERDAS covered, although you can also follow roughly the same steps in one of those applications, with variations or help from processing wizards on the way.

Now, for the first step, please upgrade to SNAP 6.0, which is now available as a stable version and comes with the atmospheric correction plug-in Sen2Corr already integrated (?). Ok, you’ll need to perform a couple of steps before actually using Sen2Cor, but fortunately, user ABraun (thank you!) has detailed all the necessary information here. Did I mention you need to be on the STEP forum? No? Well, you need to be there for the latest info about SNAP and Sentinel data usage. All in all, this is quite an important step, so make sure you don’t skip it unless you have already done that.

We need some S2 data. My go-to method is to look for it on the SciHub. Some useful information about logging in and downloading imagery from there I have covered in this article. For this exercise, I did not select the S2 platform but specified I wanted to be ordered by sensing date (with no date inserted) and to be an L1C product with [0 TO 10] cloud coverage. There are not a lot of results for my area, therefore I had the liberty to do this query as light as possible, but you can add as many constraints as you want. I picked a cloudless scene from the 5th of November, over Piatra Neamt (my hometown), that covers both the mountainous and the Moldavian plain areas. For diversity, you know.


After downloading, which may take a while depending on the size of your scene, open the product in SNAP (File-> Open Product-> zip archive or the XML if it is unzipped). You may want to create a quick RGB to inspect your image. Click right on your product, choose Open RGB Image Window and in the new panel leave the suggested combination of bands. Take a look at your new image, move your lookup window, identify some places or features you aim for. For example, I am planning to use much of my scene and I have already spotted some points of interest: the towns of Piatra Neamt, Suceava and Botosani, the Ceahlau Massif and the Izvorul Muntelui reservoir.

L1C products already come with some atmospheric adjustments from pre-processing steps, but a TOA (Top of Atmosphere) correction has never hurt someone, so we’ll put sen2corr to work. Here is also where you may want to return to the STEP forum thread we used before because although you may have installed the sen2corr plug-in, there are still some steps to perform before using it. Another important thing is not to alter the name of your product. Sen2Cor will return an error to that.

Next step is Select Optical -> Thematic Land Processing-> Sen2Cor. Assuming you have installed the Sen2Corr bundle and created the paths as instructed, we can now run the algorithm (you only have to do this once), you need to choose the right parameters. For the I/O just select your original product. In Processing Parameters choose the right type of aerosol (for me is RURAL), and the Mid Lat (November is rather WINTER). I have left everything else as default (they are automatically detected based on the information contained in the product auxiliary data). Pay attention to the resolution. If you want to retain your 10 m resolution on relevant bands, then select 10. Keep in mind that the corrections will be applied to the 10 m bands, but the algorithm first performs the 20 m processing and upsamples 60 m bands to this resolution. There is a lot more info about how to rightly choose your parameters you will find herehere and here. I encourage you to allow some time to read the user manuals. When you are satisfied with the settings hit run and wait, it will take a while. All the magic behind is thoroughly explained in the documents.


To be honest, my image was kind of perfect, I can barely see the difference after the TOA correction. A close-up pixel inspection reveals some changed values for the same pixels though.

Left: processed using Sen2Cor. Right: the original image.

You should know Sen2Cor creates a new product so if you want to compare results, make sure to save the corrected one and open the original product. Now, for the next step, we will resample everything to 10 m. That is Raster-> Geometric Options-> Resampling. For reference use a 10 m band (B02- B04), and for the method Bilinear. For your purpose, you should first establish how much manipulation will be done afterward and choose the right parameters. You can find some answers here,  here and here.

resample

Next, I advise you to inspect your product and see if it fits your requirements. Mine does,  therefore I proceed to subsetting. Subsetting is not allowed without the previous step. Raster-> Subset in the menu. My scene is not regular, being a bit chipped in the lower right corner. For display purposes, I’ll choose a rectangular shape, but I’ll keep much of my scene intact as I want to cover my key elements. For scientific purposes, I’ll make individual subsets for each of my POIs. Right now, it is just an example, therefore I’ll define the pixels for a rectangular even shape. For pixel values, zoom in, and keep an eye on the X and Y (Lat/Long) values in the down bar (Pixel Info tab). Watch as the footprint is changing and adjust to your needs directly in the preview. If you want to perform a band subset also, choose the bands in the immediate tab. I’ll keep them all here. Save your subset product.

subset

Now, the most common thing to do is to create an RGB composite. You have done this before, but this time is for analysis. The chosen bands depend mostly on your purpose and what are willing to get from the data. It might be useful to make a parallel to Landsat 8 band combinations as the two missions are pretty close in terms of the number of wavelength intervals covered and the number of bands. Here and here I’ve included some useful info. Moreover, SNAP already has some band combinations presets, which are all very suggestively named.

I have decided to do a natural color, a shortwave infrared, and false color combination. Right-click product-> Open RGB Image Window-> Choose profile and store as a band if you need it.



Left: False color infrared (R-B8, G-B4, B-B3). Middle: Natural Colors (R-B4, G-B3, B-B2). Right: Shortwave Infrared (R-B12, G-B8, B-B4)



Conclusions:

PRO 1:  SNAP comes with all the necessary tools for opening and manipulating Sentinel 2 imagery, as the Sentinel 2 toolbox and the Sen2Cor plugin have been designed and implemented specifically for this type of data.

PRO 2: The entire workflow is not difficult and even a novice can pull it in a short amount of time.

PRO 3: The processing chain is customizable and there are loads of parameters to choose from.

PRO 4: The results look very good and are easy to integrate after the initial steps.

PRO 5: You will find loads of support on the STEP forum and plenty of material on ESA’s web pages.

CON 1: Although dedicated, SNAP still has a lot of buggy material attached. There is an entire community out there to help you but sometimes is pretty frustrating to wait for bugs to be reported and solved.

CON 2: The Sen2Cor plugin installation is a bit fuzzy and it might seem complicated to a newcomer. Also, the example of the whole setup works only with the current version of SNAP (6.0).

CON 3: Working in SNAP’s GUI means downloading the entire scene, which is not so handy when you’ve got limited space and network resources.

CON 4: SNAP requires a lot of processing resources and sometimes your success might be entirely dependent on your computer configuration.

CON 5: Working with SNAP and figuring out the entire workflow might be tricky for a new user and require some prior training. (Not necessarily a CON)


PROS and CONS are based on the presented workflow only and do not take into account future analysis a user might want to perform, although some of them apply to any forthcoming actions.

#2 The advanced easy way

Making this blog post ridiculously long, I’ve decided to present you….an entire workflow in QGIS. As an experienced GIS user or remote sensing enthusiast, or someone who has barely any idea about Earth Observation or geospatial technologies, the chances to run into working with QGIS are pretty high. QGIS is an open source GIS platform, that has grown so much in the last years and it is now a viable alternative to proprietary software. Besides the great spectrum of applications, which I am not going to detail here, but you can read about on its official website, and numerous other blogs (or maybe this one here uh, I don’t know, Google has so many choices) QGIS also has attracted a great number of geospatial developers ready to put together a new useful plugin.

The old SCP plug-in GUI. This has been redesigned for the 6th version, but it  works only in QGIS 3.0

This is the story of SCP (Semi-Automatic Classification Plug-in), conceived by Luca Congedo . For a great deal of info and support, make sure you follow the Facebook page and join the official group or read about it on Luca’s blog, From GIS to Remote Sensing. The plugin was launched a few years ago and has grown beautifully ever since and with the 6th version which was released this January and is compatible with QGIS 3.0 (QGIS 2.99) only, many have changed, including the interface (became more friendly) and there are a couple of interesting new features integrated now. I’m pretty sure I’ll cover this wonderful tool in other blog posts, but for now, all you need to know to get started with it can be found on Luca’s blog.

As one of the most interesting and useful tools in QGIS, this is not designed only for Sentinel 2 processing, but also for Sentinel 3, Landsat, ASTER, and MODIS. I’ll walk you through downloading, preprocessing and the creation of a band combination, just as I did in the SNAP workflow, just to show you how is to process S2 in QGIS. We will use the 5.11 version. New SCP is not so different either, maybe even friendlier, but I have encountered some problems while using it. Maybe is QGIS’s fault, maybe not.

First, install QGIS 2.18 (if you have not already). You’ll find the installer in the highlighted link (QGIS 2.18 Las Palmas). I will not detail, but everything is very straightforward, with next-next instructions. Make sure you choose the right installer for your OS version. I’m on Windows, but you may not be. Also, keep in mind QGIS works best on Linux and somehow Windows, with MacOS requiring a separate GDAL dependency framework installation (for obvious integration reasons). After install, open your QGIS 2.18 and find the Plugins tab in the main bar. Click it and go to Manage and Install Plugins. In the All tab’s search bar, look for Semi-Automatic Classification Plugin. a detailed description will appear on the right panel. Click the Install button and wait. Similarly, install Open Layers plugin.

After installation, a new tab will be displayed in the main bar- SCP and a new bar and SC Dock will be pinned on the GUI’s sides. The Dock is actually quite useful, as you can launch the plug-in from there, by just scrolling through the tabs. You’ll also find links to documentation, tutorials, and the community.

This slideshow requires JavaScript.

Go to the Web tab in the main bar, select the Open Layers plugin and bring the OpenStreetMap basemap. Zoom in to your area and adjust the bounding box. Open SCP from the SCP tab and select the Download tab. In the Search Area boxes, you will fill in with coordinates from the map. Select the “+” icon and left click on the place you consider it to be the upper corner of your search bounding box. Then right-click on the place you consider it to be the lower corner of your search bounding box. The coordinates are automatically filled for each of the two points and a yellow bounding box will be displayed on the map.

Make sure product is correctly switched to Sentinel 2, fill in the desired dates and adjust the maximum cloud coverage (remember, it was no date, and 10 % max coverage). In Download options, check only Sentinel 2 bands (to deactivate everything else, push the associated yellow card button). You can also set the maximum number of results and filter them as you wish. Click the Loupe button for Find! This may take a while, so you can make yourself a coffee, take a nap…

This slideshow requires JavaScript.



Once it’s done, a full list will be shown in the Product list and you’ll be able to preview each highlighted scene, check the specifications in the table, remove those unwanted and order the remaining as you wish. After choosing your scenes, turn the Download checkboxes on the bottom, and select the ones you like. I’ll let Only if preview in layers and Load bands in QGIS active. Hit Run (the green wheel button) and specify a folder for your saved product.

After a while, the product will be downloaded at the specified path. Go to Preprocessing, select the path for the directory containing the S2 bands and the metadata file. Apply DOS1 atmospheric correction for turning your radiance to reflectance, set a value for NoData (0) and specify that you want to create a new Band set. Tell the plugin where to save the new product and ….RUN! In the end  all the bands will be shown in your map window.


Skip the multitude of other options, and go to the Band Set tab. You will see that the bands in the Band list are unchecked. Keep them so, as you already have them all in the Band set definition. This is only for adding a new band into the second panel. Now, in the Band set definition, highlight all the bands from B5 to B12 and click on the “-” button. We don’t need them for a natural color combination. Sort (Highlight and up/down arrow) the bands according to the RGB order 1st- R, 2nd- G, 3rd- B. That is B4, B3, B2. Quick wavelength should be set on Sentinel 2.


There are 4 options on the bottom: a) Create virtual raster of band set – use if you are unsure of the result and don’t want to save, b)  Create raster of band set – useif you want to save, c) Build band overviews – creates raster pyramids for faster visualization, d) Band calc expressions – use only if you have defined any prior Band calc in the dedicated tab. I chose b) and c). There is folder location to be set and RUN to be mmm…well…run!

result



Your result will be displayed in the map view. It is nice, isn’t it? In a similar fashion, you can do other band combinations. Just choose the necessary bands from the Band list and add them to your Band set, order them and voila!

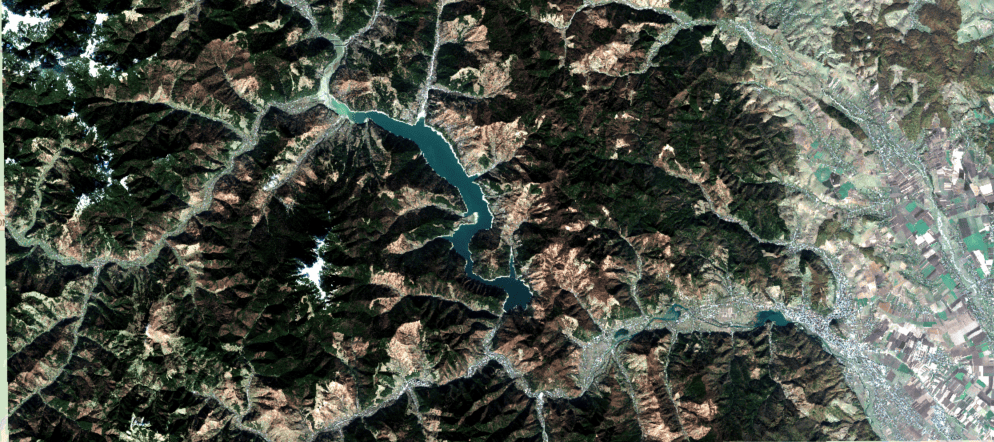

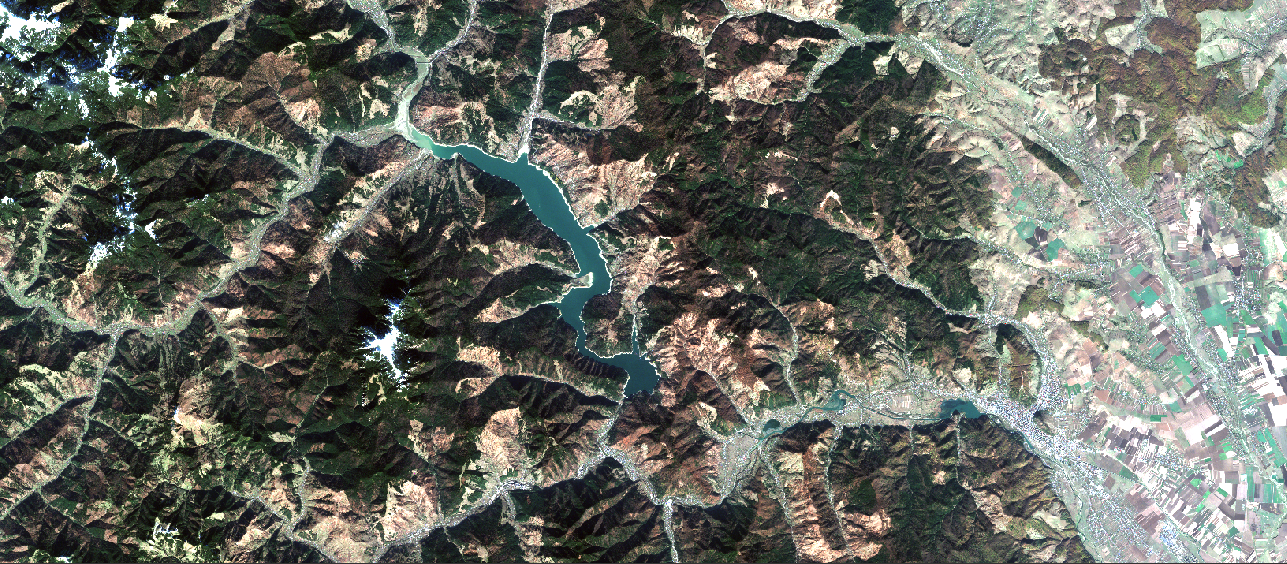

I’ve added a quick comparison between SNAP’s sen2corr result and the one you get in SCP, after pre-processing. Which one is better? Looking forward to hearing from you in the comments section!

Conclusions:

PRO 1: QGIS and the plugins are entirely free, easy to install, use and master in no time.

PRIO 2: You can download, pre-process and create band combinations in a single software and without surfing between different windows, platforms, etc.

PRO 3: The plugin is masterfully executed and has a lot of useful options apart from those presented here, making it suitable for a full-length processing workflow.

Pro 4: Has a lot of customizable options, it is very well scientifically documented and it is kept up-to-date constantly.

CON 1: The GUI for the 5.11 version is a bit crowded and may seem somehow unfriendly for the first time. This is set in the 6th version, though.

CON 2: It does take a lot of time to search, download, process…It may depend on your network and computer capabilities.

CON 3: Saves a lot of new products into your computer, it is not storage friendly.

CON 4: Setting the coordinates for your bounding box is not very intuitive. It may take you a bit to catch the rule.


#3  No fuss way

Whoohoo, this article has monstrous proportions by now. Ok. 3rd way and we’re done. For this option, we will use a service provided by Sinergise’s Sentinel Hub. This is a new startup that uses the free imagery provided through Copernicus’ flagship satellite program and delivers it in a more user-friendly way. Their applications are not entirely free, but this example is based on a free QGIS plugin.

Step 1. Open QGIS (2.18 for this) and go to the Plugins tab. Search for the Sentinel Hub plugin in the All tab, select it and install it.

senitnel hub.PNG

Easy, but here comes the tricky part. After install, a new button will be added to the toolbars (a green S on a brown background) and the new plugin will be available from the Web tab (as shown below).


Now it should ask for a Sentinel Hub ID and you should see a large row of xs. First of all, you’ll need a free account. Don’t panic, go to this link, check Create New Account and fill in some credentials. You’ll receive them after of minutes and then you should be able to log in.


You will be redirected to an internal platform where a New configuration for a WMS instance was created. Copy and paste the code into the Sentinel Hub Instance ID box in the QGIS plugin. Optionally, click Edit in the Configurations platform and customize the layers (Name, Source, Time Range, Cloud coverage, Mosaic order, Atmospheric correction -DOS1), add, duplicate and reconfigure them, and create your WMS as you wish. The Open in Playground button lets you visualize all the effects you’ve applied to your layers. Use it before saving.

This slideshow requires JavaScript.

Next, open the Open Layers -> Open Street Map in QGIS and zoom in to your desired area. Select the EPSG, the layer type (band combination) and the date (the calendar is dynamic). Drag the cloud coverage bar. Hit Create new WMS layer. The layer will be updated in the map view if you are moving around the map, only if you push the update button!

This slideshow requires JavaScript.

You can only download regular image formats (jpg, png, tiff or raw) at their maximum resolution. Use your desired extent and specify the download folder. I chose to save it as a TIFF (as raw failed) and play a bit with the image in Adobe LR/PS afterward. An in detail tutorial can also be found here.



Get your image in the Download tab.



Conclusions:

PRO 1: This is by far the fastest way to bring an already processed Sentinel 2 product right into your project.

PRO 2: The process is pretty straightforward and although does require some odd access to their platform, the workflow is very easy and fast.

PRO 3The Sentinel Hub configuration platform allows users to perform a lot of WMS customization and bring the layers exactly as they desire. Moreover, further controls are included in the plug-in also.

CON 1: Well, the obvious, you can only use this as a WMS Service, and download the product as a regular image. Good for a basemap, first-hand analysis, and a nice wallpaper. Not more.

CON 2: You are restricted to the band combinations provided by Sentinel Hub. No creativity here.

CON 3: Only a limited amount of images are returned, you cannot choose the best scene as you wish.

CON 4: Your account is not everlasting. It is more of a trial version and this info comes only at the end of the period. You need to pay for more. My first one expired 3 days ago and I had to create a new one.


All in all, I believe my go-to way of pre-processing Sentinel 2 data is still SNAP, as it uses the most advanced algorithm. Results can be pushed into the SCP plugin afterward. This is also my second option because of the direct download, batch processing and plethora of tools provided. For nice wallpapers, I’d go for the Sentinel Hub though.

There are certainly many more options to handle S2 data (Amazon Web Services, QGIS workflows, ArcGIS, other open source software, Python or GDAL, plugins, RUS environment) and I will cover them in future posts, but for the sake of your time and the length of this post, I will stop here. I am also planning to do some classification tutorials on S2 data, so hang around for those as well. As for a final word, I invite you to read this nice fresh article about Copernicus and the open source environment. which is a great and unexpected summary, suitable for this blog post.

Cheers,

Cristina

Did you see the protests on Twitter?

I was always vocal about my love for data visualization and web cartography. Some sensational things can come out of a good dataset paired with some web styling and a web server. And the best part is that nowadays you don’t even have to be proficient in any programming language to create something from scratch.  And that is my story…

I do not have extensive Python knowledge (not yet!!!), I can handle some CSS and HTML and play with SQL, and, through the nature of my job, I know quite a thing or two about web applications, servers and how to put them together. However, sometimes the only notions I need to know, are the basics one: open a browser, log in to my account and start utilizing a web map builder. Way easier and convenient if you are in a hurry. And this is what I did today!

Web-Development-Design-Python-JavaScript-PHP-HTML-CSS
Source: GiftCourse.online

Let me put some background to this. If you live on this planet and you watch the news, you may have heard about some unimportant country in Eastern Europe, called Romania. Oh well, Romania is quite quiet and calm, but nowadays, due to the overall geopolitical context and its political system, some turmoil has been created. The political party that has the majority in the Parliament and provides the Government, has been in a place of power for over 20 years. Although Romania has grown constantly and even got to be a member state of the EU, the situation is not all unicorns and fairies. We have an inefficient medical system, we score very low on poverty and education, we lack in major infrastructure investment and have some of the worst roads and railroads in the world and … we suffer from the lack of economic investment. On top of that, we may have Starbucks and we build a giant Laser, but we have people with no shelter and no basic utilities and a very poor investment in research. (We do have some stunning landscape though, pity we do not appreciate it enough. See for yourself in this video by EscapeAway, two young foreigners that made this great video during their trip here.)

These are not things that happened overnight but in the last 28 years since the Revolution. Corruption has always been a constant in this country and, since 2010 when all the institutions in the country were given politically assigned executives and team leaders, most of them unrelated to the field and with very poor management skills. Moreover, education has never been a priority for the government, with lots of experiments being done over the years, at the expense of the students.  Same happened with social policies and investment. The situation got worse last year when the political party has won again the parliamentary elections and has succeeded in establishing a majority. This success though was mostly obtained by manipulating the masses through media propaganda and making false promises, an easy to complete a task when more than half of the population is either poorly educated, impoverished or suppressed by local authorities (such as mayors, who are known as local barons). Recorder, an independent journalism community documented Romanian lives here:

Everything went into a whirlwind when their true intentions surfaced. Many within the Parliament to have active convictions or accusations and trials on a roll, starting with the Chief of the Ruling Party, who is also Chief Deputy in the Parliament. He has managed to create this tight-knit group that intended to pass an outrageous law, OUG13 (Government Ordinance 13) through which corruption was legalized if the stealing act was under 200.000 euros. This came less than a year after the tragedy of Colectiv (a local club which burned down and where more than 65 young people were killed) that triggered a series of independent journalistic investigations which exposed the size of the corruption in the  entire system .  Together they led into a massive spark that has turned into a flame for the enraged Romanians, and this was the beginning of a series of countrywide protests under the #rezist slogan. Over 400.000 people (from all backgrounds) protested in January and February 2017, which was the largest movement since the Revolution in 1989. The protests were met with a lot of reluctance from the Party which manipulated further, stating that the movement was violent (which was not!), funded by external agitators (poor Mr. George Soros, he still owes me money), or encouraged by the multinational businesses, a discourse that had the elements of Russian propaganda and an anti-EU flavor. Some explanatory articles can be found here and here.



People creating a human Romanian flag in the Victory Square, Bucharest, in February 2017. Credits: Dan Mihai Bălănescu



Needless to say, OUG13 was abolished, but they’ve continued to create chaos through a series of outrageous laws, such as releasing the criminals out on the streets because of the conditions in jails (happened, and more than 50 % of them have already committed new crimes), disturbance in the economic stability of the country, creating deficit and inflation, funding special pensions for the political elite and raising pensions and budgetary salaries or social aids (all expenses with no return), brutalizing critical environmental policies and progress and, perhaps the worse of all, sending the country through two political crises, by dismissing two of their endorsed Governments in less than 1 year. No need to explain how poorly prepared the ministers in both the executives were, how little experience they had and how nearly every management post was lead by someone who was not fit. Moreover, this was all caused by two of the prime ministers coming into conflict with the Chief of the Party over his mixing into governmental affairs and decisions. What caused the second wave of protests, in late 2017 and January 2018, was the continuing legacy of the OUG 13 in the Parliament this time, in the shape of very controversial judicial laws (that will create the permanent damage to our judicial system, will eliminate the principle of justice independence and offer fewer means to investigators to do their job and raise criminality and legalize corruption). This, and the continuous promotion of incompetence with the nomination of a political subject as prime minister, loyal to the Chief of the Party.

Therefore, the #rezist movement is back on the streets and on the 20th of January, the largest protest since last year was held in Bucharest, with people coming from all over the world and the country to join the protesters. The official numbers in the media stated that more than 50-60 000 people were making their voices heard and many external televisions and media outlets covered the movement. On Twitter, people reacted and posted during these days, using the hashtag #rezist (and some other custom made ones).



Romanians protesting in snow and cold conditions on the 20th of January 2018, in Bucharest. Credits: Matei Edu



Each one of ous, in the resistance, has a duty to help somehow. I chose to do a map. For me, it was a perfect opportunity to get my hands on a good dataset and put my mapping skills to work without too much effort. And this is where the beauty of online mapping services. One can make a map in no time for free and show something meaningful to the world, and it is not even necessary to be a programmer or a cartographer. Ha!

There are numerous services, like Mapzen (RIP), Zeemaps, Mapbox, Scribble Maps, Maptive or others, even Google Maps or ArcGIS WebApps (though not entirely free and it is subscription based), that allow you to create something nice, from scratch. I, like CARTO (formely known as CartoDB), which super simple to use and intuitive and comes also with some powerful free features (custom CSS and HTML, build in widgets and analysis options, useful basemaps, and the list goes on), that will allow you to create simple maps. And the guys running this are great!

This idea of mapping the protests is not new. I’ve dealt with social media data for my BA thesis (where I’ve analyzed social tendencies in territorial planning using social media data from Facebook and Twitter, an idea I stole from Ed Manly, the super guy from UCL that does super things, and applied it on Romanian pages and content). I’ve also had a presentation on the Geo-spatial.org seminaries in April 2017, at the Faculty of Geography in Cluj Napoca, about mapping the previous wave of protests (unfortunately the map is no longer available, sorry for that) and the same idea drove me to this second map of the protests from last night. What I did, was to copycat the concept and spend two hours making some nice visuals. Here’s how:

The dataset:

Well, for a map to become a map, you need a dataset, obviously. The cleaner, the better. Mine was a pile of tweets, I’ve managed to download using CARTO’s Connect to a Twitter dataset feature. Important thing: this is a business account feature so it won’t be visible by default in an individual account. I do not own a business, so I did what every interested person would do when he or she does not understand why on Earth they have a tutorial for a non-available feature: I’ve emailed them! Fortunately, they did answer and when I’ve explained why I need the tweets, they were super open and thrilled at the idea and encouraged me to map on with the activation of the service for 10000 tweets. Quite enough.  Did I tell you these guys are amazing?


I’ve used much of these for the previous map, obviously, but I got a few left, so today I used the leftovers to scrape the Twitter again and retrieve what I needed. Of course, I did some research before: which hashtags are important, how to narrow down only to the relevant tweets, etc. I’ve stayed with those who contained #rezist. That was enough for me.

Capture2

Note: The tweets are automatically downloaded and put into a table structure (from where you can download them as csv, shp and a couple other relevant formats). The dataset is automatically uploaded into your repository and even creates a default map. There is a particular structure that apparently is very important for any further manipulation, therefore I did not change any of the data types or the structure of the table, only some column names. Do not mingle with its feng-shui!)

The map:

Easy peasy…It has already been created when I’ve downloaded the dataset. Well, in a bare, unappealing manner. So I did:

  1. Changed the basemap: you have quite a few options to do that. I like the dark one from Carto (Dark Matter lite), not only because it enhances tweets, making colored points to pop up and suits an animated dataset, but also because it is one of the official #rezist colors. But for your own map, choose whatever, or bring your own (you have this option… neat!)Capture3
  2. Enable map options: First of all, please go to the map options tab in the left (the one with some line controls) and tick the Search Box, Zoom Controls, Legend, Leyer Selection, Toolbar, Scroll zoom wheel. VERY IMPORTANT! :)Capture4
  3. Styled the layer dataset: Well, for this map I have the same dataset, duplicated. Why? Because I needed both the dynamic effect and the static effect. Therefore, I’ll split this step in two:Capture5
  • Dynamic dataset: Rename it into something appropriate and click Edit, go to Style (ignore other tabs) and choose the Aggregation type to be animated. Then you’ll play with colors (obviously I had to go with some yellow, specific to the #rezist movement), blending, strokes, overlap, and dynamics as you wish. For tweets to be sorted out and animated in a timeline, choose the column that says posted time. A nice timeline widget will appear, which you’ll also customize later. Not only that but in the Legend tab, you’ll choose a custom legend and specify a denomination and general color for the points. Skip the title, it is not important, you’ll have the name of layer anyway. A nice legend should appear on the map.
  • Static dataset: the same operations are applicable: rename, edit, style and leave the aggregation to By Points. Choose a size, color, stroke and blending (I like screen, it’s nicer on this kind of maps). Go to the Legend tab and repeat the steps above.

Now, getting back to the main panel, you’ll see that you have two options: Layers and Widgets. Cool, you can add custom widgets to do stuff. Data cool!

4. Widgets: In widgets, you’ll already have the Posted time widget, which was created by default when you chose to aggregate the first dataset in an animation. Rename it into something nicer than some column name and edit it. You can specify the time zone, how many buckets (little columns you want to see) and the time frame (hourly, daily, weekly, monthly). For me, was obviously hourly. I wanted to also be a dynamic widget and the data represented to change accordingly when I make any move on the map (e.g Zoom in). Enabled that. Also, I’ve chosen some yellow color to match my yellow points and checked a couple of times if the cursor is on track. Good. I can now Show local time, Play, See totals and select only those timeframes I want directly through this little panel.

Moreover, I thought that since I have tweets spread all over the map, I want to see which languages were used. Since the dataset comes with a column where language is recognized, I had to use it. Therefore, I’ve added a new widget, called it Tweeting languages and edited it. I used the Category Type, and aggregated by twitter_lang, by counting them (operation COUNT). Just as before, thought a little dynamics wouldn’t hurt and set the color to yellow. The same yellow. To make it look more stylish, I added a suffix, that will specify what on is actually counted there. The widget is veery nice. Appears on the top right, lets you see the first relevant options and even lets you filter when searching for a specific language (here language code. Ex: Arabic is AR), or select those already on display.

A second widget I thought I might add, was a total tweet count. Ok. Not all tweets that have #rezist were downloaded, but only those who contain location and can be geocoded. There may have been more than 700 (the number I got), but only those were on my map because other are filtered out at download. It is a nice feature that CARTO has and eases a lot of your work. If you need all of them, you’ll have to find another service or work your Python magic through Twitter’s API.

Aha, so have 708 relevant points on my map, therefore I choose to create a new widget, specify I want it to be a Formula type, and my operation would be Counting the ID (hmm…so COUNT(cartodb_id)) which is the ID given at download to each point (ObjectID or FID). Rename the widget for a title, make it dynamic and add a little description to avoid confusion when numbers change.

The same operation repeated will give you the Retweets widget, which I used for measuring engagement. Ta daaa!

Now, remember I activated all these widgets in the first layer (the dynamic one). The first one is dedicated to this layer, and any changes on the map will only be visible if the layer is active, but the other two will also be affected even though the first layer is off and the static one is on.

All you need to know is to make sure all changes go well and hit the Publish button! A link and some share options will get your map in the world.

My final map of the #resist protests on the 20th of January looks like this and can be consulted here for a full and nicer version than the embedded one:

Hopefully, this will shed some light on the scale of support people in Romania get for their courage to stand up in front of corrupt politicians and the size of our battle. Any little step is valuable for the community and we can contribute with whatever skills we have. Meanwhile, people will be on the streets protecting what is left of Romania and democracy.  # rezist












I had a geo-spatial weekend!

Many days in the life of a researcher are spent going to conferences, networking and getting the pulse for the latest updates and advances in science and technology. I am no different species and I enjoy these outings very much, as they are disruptive to my everyday job.

This weekend I have attended the geo-spatial.org seminaries (mmm..well…for the 6th time in the last 3 years) in Timișoara, Romania. For those who are not familiar with this event, I have a brief confession to make: these guys are awesome! I am not saying it just for being friends, but because they are some of the best geospatial professionals in Romania and organize these events in order to share the knowledge and educate present and future generations in the spirit of open geoinformatics and open data.



24135549_10211349417435329_34425732_n
Timisoara is a pretty town.



The seminaries are coagulated across the idea of open source technologies, applications, and utility, and while I am not the most ardent supporter of this ideology (I promised myself I’ll develop on this idea on a future post), the thing I truly like and enjoy at these gatherings is the “community feeling”. These are not the typical conferences, where you wear formal or semi-formal attire, discuss for a brief period on your topics and interests while you chew some tapas and drink local wine. Nope, these are those types of a semi-informal nature, where your butt won’t sore, you’ll hear plenty of jokes during the sessions, people come because they are curious and not because they are supposed to, and still get to grasp the latest news in the field and feel the pulse of the only Romanian geospatial community (did you notice? It is the second time I call it like this).

The most valuable thing is they are open to students who seek to be active and build a career in the field. There is a mix of academia, professionals, important business players (that unlikely to other events, are here to mingle, not to sell) and young and enthusiastic blood. The seminaries are being held three times a year, each time at a different place ( the University of Bucharest, West University of Timișoara and the Babeș-Bolyai University in Cluj) and every time is refreshing to see old but mostly new faces. There is a lack of intimidation, an openness that students should really benefit from and grasp this opportunity to get noticed, share their work and communicate with people with more experience behind.

Romania does not a have a vibrant geospatial scene. Actually, things move slowly and there is barely something glued here in terms of professional community. There is the academia, with their secluded environment, which sometimes collaborates with the businesses, both sides concluding there is plenty of room for more. Also, businesses are scarce, divided by competition and brought together by the same competition. Here is where the most of the professionals are polarized. Apart from this, you may find some scattered material in the plaiade of state research institutes and agencies. Each sector has its own events, most being that type- with formal attire and pretzels and…Don’t get me wrong, I am not saying these are not interesting, helpful, worthy, or anything. They are. But are also intimidating to students, are not always meant for them (usually that is why student symposiums are held), have a certain approach (more business, theoretical, a different rhetoric) and participation and inclusion is not always high. This might lead to a sentiment of inaccessibility or intimidation. I know, here I can develop a lot and you can disagree or not, also, a lot. But this is not the point of this article, nor is this long paragraph.

Getting back to the subject, well, let me tell you a little more about the event itself: the geo-spatial.org seminaries.

The architecture: 2-day event structured in 1 day of oral presentations and workshops, and 1 day of two 3 hour workshop parallel sessions.

Total presentations: 17 spanning on topics from CAD to Earth Observation, Deep learning, Land administration, new products, applications and career advice.

Total workshops: 9 spanning from Earth Observation to cartography, programming and database intros, data access, product tutorials, and analysis.



GeO-SPatial Statistics
Data used here is estimated and might not reaveal the reality, but something very close to it.



On the first day, I’ve attended the presentations session, and although all of them were super thought-provoking (congrats to all the authors!), some of them caught my eye as they were closer to my interests, others just because of their nature. Let’s dissect:

  1. A radiograph of the geospatial open source ecosystem (Codrina Ilie) – I liked the topic, their endeavor, and the results. As the author said, I had no idea there is such a great pool of resources and how many relationships are between them. The study was carried by a consortium of companies for understanding the present open source environment and its benefits for business development. The present results can also be consulted as a cute graph here.
  2. Earth Observation Data v1 and v2 (Marius Budileanu, Ionut Șerban, Sorin Constantin and Cristian Flueraru) – a series of presentations that mapped the current possibilities in freely accessing remote sensing data on both states: lower and higher resolution. Did you know Planet offers up to 10.000 km2 of high-res data, based on a brief scientific proposal? No? Me neither.
  3. Using agricultural production data to validate NDVI (Andi Lazăr)- while I am not so prone to agriculture, this presentation was quite interesting in means of exploiting in-situ collected data from production machine sensors, to validate the results you get from satellite data. Recycling old data to peak into new utility.
  4. Some considerations on predicting agricultural production (Ștefan Manolescu) – I know, I know, agriculture, but this presentation had me from the first slides. Some interesting info on traditional agriculture and the comparison with modern models. I liked it for being honest about how prediction models are not perfect, how hard is to acquire all the data and actually getting the expected results.
  5. Object-oriented analysis of geospatial data (Lucian Drăguț) – a very well structured and paced explanation of the whole process, a refreshing feeling to see that this kind of studies is being tackled by the geographic community in Romania and some interesting results.
  6. Deep learning for Earth Observation (Teodora Selea, Marian Neagul) – again, an introductory 10 minutes on neural networks and preliminary results. I have to agree I have a special interest in these topics (both this one and the previous one) because of my thesis, but I could not help but feel a little hopeful that the future will bring more similar studies in the autochthonous geospatial environment.
  7. Aspects of building a GIS career (Tudor Bărăscu) – I had to forgive Tudor for stealing the majority of the time for my presentation, he is always funny, and he builds his own way towards the students, reinstating many of the true values that should be adopted while building a career, of any type, not only in GIS.

The full programme and presentations can be found here. Notice that some of them are still in Romanian.

For the second part of the day, I’ve attended the Introduction to GDAL workshop. I had some previous attempts at working with GDAL, but some were successful and some failed. Both of the instructors (Ionuț and Sorin) are proficient and thought some external advice would be beneficial. I did not win the final prize, but I was mere seconds to do it. (jk).

Anyhow, it was difficult to choose which workshop to attend, as all three were interesting to me – the nice and useful introduction in PostGIS and the second part of the package about how access EO data (PostGIS – GEOintroduction in databases, Earth Observation data access).


The second day was shorter for me, by choise. I was an instructor for the RADAR 1.0.1- introduction to mosaicing workshop and spent my morning enchanting people with notions about polarization, amplitude, phase and other charming concepts, debugged SNAP, hoped for a miracle in the processing steps and ended explaining most of the things theoretically. People want to drink coffee at 9 am, not be hit by abstract, complicated things, keep that in mind! Feedback was good though and I am more than happy with that. If you’re interested, take a look at my tutorial on the subject.



mosaic100_RGB
In case you’ve missed it, here’s Romania under radar.



In parallel, there was a line of other super interesting workshops, like the one about Infographic design using QGIS and Inkscape and Tree inventory in the citrus plantations. Also, the afternoon session, seemed very appalling, covering topics like QGIS 3 , editing in Here Map Creator (Here’s own online tool for crowdsourced geospatial data) and analyzing and processing data in gvSIG (already a staple open source GIS software).

All in all, we had a full four days of geospatial knowledge, good humor, friendly atmosphere and community feeling.  If you’re eager on experiencing this, you’re more than welcome to the next session which will take place next spring in Cluj.

See you there,

Cristina


Disclaimer: The choices from this article are simply my own. I do not favor anybody specifically, the selected presentations were merely the ones that I felt more interested in. All the others were equally fine and explanatory and had a lot of useful information. The whole depiction of the seminaries is my own and can be somehow biased by its subjective nature. You are welcome to discuss in the comments section, below.

Bucharest under the radar

It has been a while since I’ve moved to Bucharest to study territorial planning and although it turned out not to be my lifetime career, I still peek into some of the topics, just for fun. This time, I’ve taken a turn from the usual types of analysis and played a bit with some remotely sensed data.

These days I’ve managed to finish ESA’s EO College fantastic radar course, Echoes in Space and since I am taking baby steps on learning more about SAR, I was thinking that replicating one of their tutorials with a more autochthone subject would be interesting and add more to my former urban planning and my current remote sensing skills.

The tutorial concentrates on deriving an urban footprint for Bucharest, the capital, the largest city and by far the most important site of Romania. Bucharest has a long history of chaotic development and has grown more and more horizontally, spreading its tentacles over the nearby area. One way of understanding the mechanisms behind its urban sprawl is to perform some change detection analysis. In order to do so, a clear delimitation of the constructed environment is essential, and one way of achieving that is to dig into the information radar sensors are capable of delivering. One good example is the mesmerizing map of the continent’s urban agglomerations, released by ESA last year and obtained from some extensive processing of TerraSAR-X/TanDEM-X SAR data:

Urban footprint in Europe. Courtesy of @European Space Agency.

On the map, Bucharest strikes as a single black spot on the face of Romania, but I’ve wondered how it looks from a more zoomed in perspective. In order to find out, I’ve selected two S1A scenes: one from the 10th of July 2016 and the second one from the 18th of May 2017.

The methodology used to get the urban footprint from radar data can be found here. If you are not a fan of long step by step written tutorials, this video is basically the interactive alternative (which I also like better):

After some initial search of compatible overlayed scenes, many attempts to dismiss the whole thing and some long nights spent processing and reprocessing some of the data, the final RGB result was something of a very colored picture, ranging from violet to yellow, with the latter striking as high backscatter and high coherence levels over urban or constructed areas.

I’ve been positively surprised to notice how well defined is Bucharest in this image and how nicely you can trace main traffic arteries by just looking at the continuous stack of villages that accompany them.



S1A_IW_SLC_1SSV_split_Orb_Stack_coh_deb_ML_TC_Stack_RGB
Bucharest under the radar.



The fun part was to mask only those yellow bits and derive a clear urban footprint. I’ve played a bit with subsetting and threshold values here, and Tadaaam!:



The final result is a bit messy but beautifully distinct.



Now, there is a glitch. The whole process has been done using SNAP and although there is an option to export mask pixels, apparently it is not working for everybody and it is still under investigation in an open issue. There are numerous workarounds, but I haven’t identified one for me, yet. Hopefully, this gets solved, as I got super excited about the possibilities to use these newly resulted products.



bucharest_white
This is how the big black spot looks if you zoom in.



Cheers,

Cristina
